FlashPoll DSP 9612 Analog Modems for Industrial and SCADA systems designed harsh evironment.

KEY FEATURES

• Designed to optimize communication links where high speed or where milti-point drops are necessary
• Dual Mode: 9600/4800 bps and FSK, Bell202T 0-1800 bps
• Fast train modem equalizer with 23 msec RTS/CTS delay
• DSP design with automatic adaptive equalizer
• Leased line interface protected with heavy-duty surge protection
• Installs in the Raymar-Telenetics and Motorola/UDS RM16M Universal Data Shelf
• DSP9612FP Powered by 85-265 VAC, 85-400 VDC
• DSP9612-LV Powered by low voltage DC, 10-53VDC

PERFORMANCE & APPLICATION

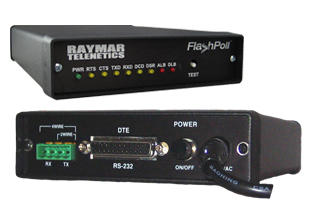

The Raymar-Telenetics FlashPoll DSP9612 is a dual mode, full-featured 9600 Fast Poll and Bell 202T leased line modem with the fastest training time in the industry: 23 msec RTS/CTS delay. Ideal for utility and industrial automation multi-drop applications, including SCADA systems, traffic automation, and oil & gas automation projects where an unlimited number of drops is desirable. The DSP9612 is a standalone modem designed for 4-wire, full-duplex, or 2-wire, half-duplex operation over a voice-band leased line or private wire/unloaded metallic circuit. The modem design utilizes the latest digital-signal processing (DSP) technology to achieve high performance.

COMPATIBILITY

In FlashPoll Mode (9600/4800 bps), the DSP9612 fastpoll employs Raymar-Telenetics ’ proprietary modulation and encoding scheme to achieve fast modem training time. In Bell 202T Mode, the modem is end-to-end and backward compatible with Bell 202T (0 - 1800 bps) modems.

OPTIMIZATION & CAPABILITY

The DSP9612 fastpoll is Ideal for systems where fast response, short training time, and low throughput delay is required. The DSP9612 FlashPoll is optimized for fast receiver equalizer training and extremely low throughput delay. The dual mode capability allows the DSP9612 fastpoll modem to communicate with existing Bell 202T (0 - 1800 bps) remote modems, which can then be upgraded at a later date to a Raymar-Telenetics DSP9612 FlashPoll modem.

Ordering Information

FlashPoll Standalone
